Custom Layers

The Lambda function includes Chrome and base fonts by default.

In some advanced use cases, you want to replace certain parts of the stack:

• Use another Chrome version (you may need to build it yourself)
• Replace default fonts or emojis

Before you create a custom stack, feel free to contact us to see if Remotion can provide the changes upstream.

AWS Lambda limits the combined uncompressed size of the function ZIP and all attached layers to 250 MiB.

If you just want to add fonts, we recommend to use Web fonts instead.

Default layersv4.0.534

Consider using our layer options before creating a custom stack:

The following uncompressed sizes apply to Remotion v4.0.534, which uses Chromium 157.0.8080.0. 1 MiB is 1,048,576 bytes.

For older Remotion versions, see the archived default-layer documentation from v4.0.533.

With the default option (--runtime-preference=cjk or no option):

Item	Size
chromium	188.96 MiB
emoji-google	4.76 MiB
fonts	1.87 MiB
cjk	14.07 MiB
Total layers	209.66 MiB

With the option --runtime-preference=apple-emojis:

Item	Size
chromium	188.96 MiB
emoji-apple	8.57 MiB
fonts	1.87 MiB
Total layers	199.40 MiB

note

For Remotion v4.0.534, the totals above exclude the function ZIP, which also counts toward the 250 MiB limit. Any custom layers also count toward the same limit.

note

Enabling Apple Emojis replaces the Google Emoji and CJK (Chinese, Japanese, Korean) layers. Load additional fonts as Web fonts if you need CJK characters with Apple Emojis.

Ensure Remotion version

Customizing Remotion Lambda Layers is possible from v3.0.17.
Lambda binaries might change in minor Remotion versions, it is your responsibility to keep your versions up to date.

Creating a custom binary

Go to the remotion-dev/lambda-binaries repository and clone it.

The folders chromium and fonts contain the binaries for the ARM version. The x64 version has been discontinued.

Put the files that you want in the corresponding folders - for example, add the Apple Emoji Font AppleColorEmoji.ttf into the fonts/.fonts/NotoSans/ folder.

Keep the function ZIP and all layers within the combined 250 MiB uncompressed limit. Remove other files if needed, such as fonts/.fonts/NotoColorEmoji.ttf and fonts/.fonts/NotoSansCJKjp-Regular.otf.

You can see the size of the folders by running:

sh size.sh

If you are done with your changes, run:

sh make.sh

This will zip the layers and put them as artifacts in the out directory.

Creating a Lambda layer

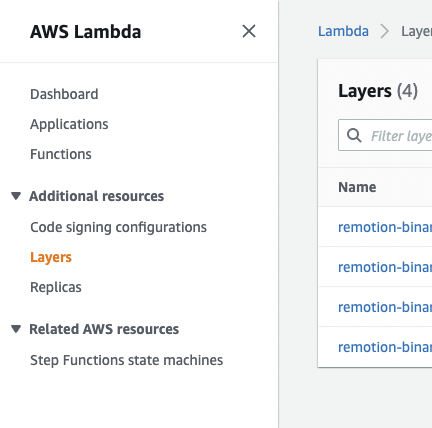

• Go to your AWS console, select the Lambda product, then select "Layers":

• Select "Create layer" and fill out the name. Upload the created layer from the out folder into the form. The fields "Compatible architectures", "Compatible runtimes" and "License" are optional.

• Once the layer is created, you will get a version ARN (example: arn:aws:lambda:us-east-1:123456789012:layer:apple-emoji:1). Copy it.

note

You need to do this for every AWS region you want to use Remotion Lambda in.

Specify custom Layers while deployingv4.0.510

Pass every runtime Layer to deployFunction() or --custom-layer-arns. The list replaces all Remotion-hosted Layers.

Credentials used to deploy custom Layers need lambda:GetLayerVersion permission for the specified Layer ARNs. Updating an existing function additionally needs lambda:GetFunctionConfiguration and lambda:UpdateFunctionConfiguration.

Custom Layers are required in AWS China regions.

Update the Lambda function

Before you continue, make sure a Remotion Lambda function is deployed.

To switch out the layer of a deployed Lambda function, you can either do it via the AWS console or use a Node.JS script that you can run after every function deploy.

Node.JS

• Go to your AWS console, select the Lambda product, then select the Lambda function you would like to update.

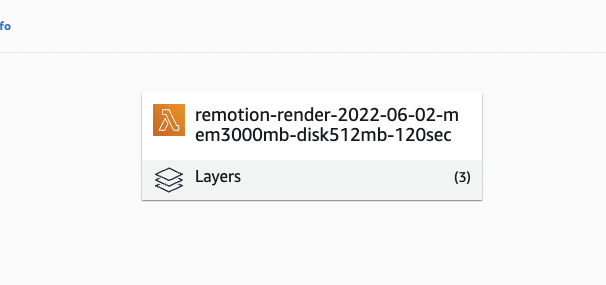

• Click on "Layers":

• Click on "Edit", then select the layer you'd like to replace, then click "Remove", then click "Save".
• Once returned, click "Add a layer", then click "Specify an ARN", then paste in the layer version ARN you retrieved from the previous step.
• Click "Verify" and then "Add".

Congrats! You customized your Lambda function.

AWS console

Before you can update a function via the Node.JS APIs, you need to add another rule to your user role:

[
  {
    "Sid": "UpdateFunction",
    "Effect": "Allow",
    "Action": ["lambda:GetFunctionConfiguration", "lambda:UpdateFunctionConfiguration"],
    "Resource": ["arn:aws:lambda:*:*:function:remotion-render-*"]
  },
  {
    "Sid": "GetOwnLayerVersion",
    "Effect": "Allow",
    "Action": ["lambda:GetLayerVersion"],
    "Resource": ["*"]
  }
]

Given a region, function name, layer to remove and layer to add, you can use the following snippet to update a function with custom layers

import {AwsRegion, getAwsClient} from '@remotion/lambda';

// Customize these parameters
const REGION: AwsRegion = 'us-east-1';
const FUNCTION_NAME = 'remotion-render-2022-06-02-mem3000mb-disk2048mb-120sec';
const LAYER_TO_REMOVE = /fonts/;
const LAYER_TO_ADD = 'arn:aws:lambda:us-east-1:1234567891:layer:apple-emoji:1';

const {client, sdk} = getAwsClient({
  region: REGION,
  service: 'lambda',
});

const fnConfig = await client.send(
  new sdk.GetFunctionConfigurationCommand({
    FunctionName: FUNCTION_NAME,
  }),
);

if (!fnConfig) {
  throw new Error(`Function ${FUNCTION_NAME} not deployed`);
}

await client.send(
  new sdk.UpdateFunctionConfigurationCommand({
    FunctionName: FUNCTION_NAME,
    Layers: [...(fnConfig.Layers ?? []).filter((l) => !l.Arn?.match(LAYER_TO_REMOVE)).map((l) => l.Arn as string), LAYER_TO_ADD],
  }),
);

See also

• Lambda runtime
